Eye Com
DRS
5000/Universal |
Description |
|
DRS5000 Microfilm Reader Scanner shown with microfiche
carrier

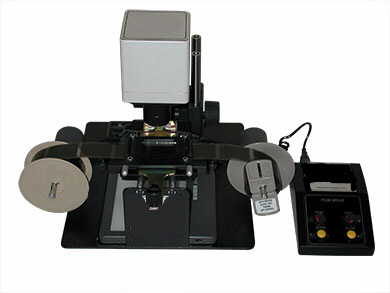

DRS5000 Microfilm Reader Scanner shown with motorized roll
film
carrier |
Eye
Com DRS 5000/Universal Microfilm Reader-Scanner
The Eye Com DRS 5000
is a microfilm reader/scanner for roll film and microfiche. With
its low price and small foot print (12"x12") the DRS5000 brings
affordable, compact digital microfilm options to every microfilm
media user including Archives and Libraries. A single USB
2.0 connection to a computer supplies power and data to the
DRS5000. This allows researchers to easily scroll through
microfilm or microfiche. With it's 7x-48x zoom lens the DRS5000
allows researchers to zoom out for a full page or zoom in for
enlarged detail. A single press of the mouse button will capture
the image instantly making it immediately available to save,
print or transfer with multiple options such as email, CD or a
USB portable device. The DRS5000 has a wide variety of simple
interchangeable carriers that will accept 16/35mm roll film,
microfiche, microfilm in 3M style cartridges, and opaque cards.
The single high quality 7x-48x zoom lens on the DRS5000 universal microfilm reader/scanner
and the standard 360
degree image rotation take the DRS5000 versatility to yet a
higher level.
Carriers:
Manual 16/35mm,
Motorized 16/35mm, Motorized 16mm & 3M carrier,
Microfiche/Aperture Card, Combination Motorized 16/35mm &
Microfiche
Lens: Adjustable
Magnification:
7X-48X
Focus:
Manual
Largest Viewable Area:
Full frame 35mm
Image Rotation:
Manual 360 degrees
Preview Speed:
Live
Capture Speed: Instant
Resolution: 5 Mega-pixel
Illumination:
Cold Fluorescent
Interface: USB 2.0, TWAIN
Hardware Interface: USB 2.0, TWAIN
Operating System:
Windows 2000, Windows XP
Computer Requirements:
Pentium 4 or better with USB 2.0 Interface
(Optional PC below)
Dimensions:
15”H x
12”W x
12”D
Weight:
10 lbs.
All systems include 7X-42X
Adjustable Zoom |
|
DRS 5000
Reader-Scanner System Configurations |
List Price |
Your Price
|
|
DRS 5000
Microfilm Reader-Scanner
with
Microfiche/Aperture card
Carrier |
$4,485.00 |
$4,195.00 |
|
DRS 5000 Microfilm
Reader-Scanner with Manual 16/35mm Roll Film Carrier |
$4,978.50
|
$4,610.00 |
|
DRS5000 Microfilm
Reader-Scanner with Manual Combination Carrier
for Fiche and 16/35mm Roll Film |
$5,730.00
|
$5,398.00 |
|
DRS 5000 Microfilm
Reader-Scanner with Motorized 16/35mm Roll Film Carrier |
$6,990.00 |
$6598.00 |
|
DRS 5000 Microfilm
Reader-Scanner with Motorized Carrier
for 16mm 3M Cartridge |
$7,540.00 |
$7,154.00 |
|
DRS 5000 Microfilm
Reader-Scanner with Motorized
16/35mm Roll Film/Microfiche Combo Carrier |
$8,212.00 |
$7,594.00 |
|
DRS 5000 with
16/35mm
Motorized
Roll Film Carrier & Interchangeable Microfiche Carrier |
$7,645.00
|
$7,195.00 |
|
DRS 5000 w/3M Cartridge/16/35mm
Motorized
Roll Film Carrier & Interchangeable Microfiche Carrier |
$8,200.00
|
$7,798.00 |
|
DRS 5000
Reader-Scanner Film Carriers & Accessories |
List Price |
Your Price
|
|
DRS 5000
Microfilm Reader-Scanner Base
Unit |
$3,825.00 |
$3,695.00 |
|
Microfiche/Aperture card
Carrier |
$660.00 |
$629.00 |
|
Manual 16/35mm Roll Film
Carrier |
$1,153.50
|
$998.00 |
|
Manual Combination Carrier
for Fiche and 16/35mm Roll Film |
$1,905.00
|
$1,695.00 |
|
Motorized 16/35mm Roll Film Carrier |
$3,165.00 |
$2,925.00 |
|
Motorized Carrier
for 16mm Roll Film/3M Cartridge |
$3,715.00 |
$3,465.00 |
|
Motorized
Combo Carrier
for Fiche/16/35mm Roll Film |
$4,387.50 |
$3,989.00 |
External Light Power Supply
- This is an optional external power
pack.
The light pad is normally
powered by AAA batteries. |
$160.00
|
$155.00 |
|
Quick thread Take up Reel |
$45.00
|
$45.00 |
Kiosk Software - Optional software to make
capture & output operations easier for the novice computer user
- works in conjunction with the standard software supplied.
Ideal for Libraries.
$1595.00 when purchased with a DRS5000 System |
$1,820.00
|
$1,699.25 |
Custom Windows XP Computer & Monitor
A computer can be fitted
underneath the DRS5000 digital reader-scanner unit to make a stand alone unit
(see photo on left).
|
$2,328.00
|
$1,999.00 |
|
DRS 5000
Reader-Scanner Extended Waranty Options |
List Price |
Your Price
|
|
DRS 5000
Microfilm Reader-Scanner 1
Year Extended Warranty (after standard 90 day) |
|
$574.00 |
|
DRS 5000
Microfilm Reader-Scanner 2
Year Extended Warranty |
|
$1,148.00 |
|
DRS 5000
Microfilm Reader-Scanner 3
Year Extended Warranty |
|
$1,720.00 |
|
PDF
Files | |
