Roll Film Microfilm Readers

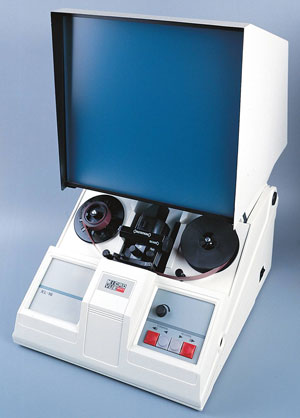

VXL-16 Motorized 16mm Reader

Motorized 16mm microfilm reader with manual loading for Open Spool film

Manual Threading Motorized 16mm Reader
The VXL series is a small footprint 16mm microfilm reader that will fit any desk. Simple operation and reliable performance with 360° image rotation and vertical scan knob make this a great choice for viewing your film. The VXL series has dual lens capability and automatic film gate opening to protect your film and minimize the danger of scratching. Lenses (24X, 32X, 36X, 42X) not included with the VXL series.

The VXL-16-O model features automatic 3M Cartridge loading plus manual threading 16mm open reel capability.

 The 16-B model comes with a blip counter. ANSI clips or cartridges will not work with these models.

 The VXL-16-BANSI has automatic film threading from ANSI cartridges and blip counter. This unit will not accommodate 3M cartridges.

RF-35 35mm Microfilm Reader

Motorized 16/35mm rollfilm reader
Designed for libraries and engineering applications
Ideal for hadicapped persons

The RF-35 is a desktop microfilm reader designed for specific customer needs. Featuring easily accessible controls, this reader is ideal for handicapped patrons and for a small office at home. This 35mm microfilm reader is similar to the VML-16 motorized reader listed above but accommodates 35mm open spool film. The RF-35 35mm roll film reader is engineered to ensure reliable performance and projects a clear easy to read image on the screen. Available lens magnifications are 12X, 27X, 35X, and 42X which are not included with the VMV35 model but sold separately.

EC 1200 Image Rotation Microfilm Reader

The EyeCom EC 1200 is an extremely versatile microfilm reader with image roataion and two dual lens options for viewing microfiche or roll film. An unique floating lens system assures constant focus over the entire film area. A drive belt focusing system provides razor sharp images with no backlash on all Eye Com desktop microfilm readers. Additional supplies and accessories are listed at the bottom of the EyeCom Microfiche Readers page.

Indus 4601-11 Microfilm Reader

Source Document Reader available in Single or Dual lens

The Indus 4601-11 Microfilm reader has an A4 size screen for reading Source Documents at full blowback from 16/35mm rollfilm and for COM microfiche at 3/4 blowback. There is standard 360° image rotation for one lens in the single lens version and for two lenses in the dual lens version. State-of-the-art features such as works-in-a-drawer, dual intensity long life lamp, central control for focus and image rotation make the 4601-11 a very versatile microfilm reader reader. An optional carrying handle is available for easy portability.

Indus 4601-11 Microfiche Reader Advantages:

• Front mounted precision gear driven focus control
• Works-in-a-drawer design
• Dual intensity long life lamp
• Optional carrying handle
• Optional motorized roll film carriers available
• 1 year limited warranty

Indus 4601-11 Microfiche Reader Specifications:
Input: Microfiche, Jackets, 16/35mm Rollfilm in Open Reels
Screen Size: 11.6” H x 11.2’W (2294.6mm x 284.4mm)
Screen Color: Standard: Non-Glare Blue. Optional: Gray or Green
Focus & Image Rotation Controls: Front mounted precision control gear driven
Image Rotation: Standard Single Prism 360 degree rotation. Optional Dual Prism for Dual Lens with 18X and 15X
Magnifications: Standard Single Lens 24X, 32X, 36X, 42X, 48X. Optional Dual Lens with above listed lenses. Optional 18X, 15X
Carrier: Fiche Carrier 105mm x 152mm (4" x 6") self-opening, 16/35mm Manual Rollfilm Carrier for Open Reels
Lamp: Dual Intensify 13.8V, 50W
Construction: Metal and High Impact Plastic
Electrical: Standard - 120V. 50/60Hz. Optional - 220/230/240V, 50/60Hz. CE mark.
Dimensions: 22-3/4” H x 11-3/4” W x 16"D (284.4mm x 298.4mm x 406.4mm)
Weight: 28 lbs. (12.7kg)
Warranty: 1 year limited warranty

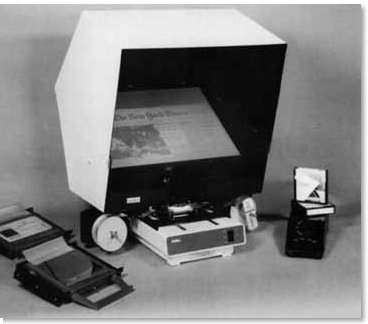

Indus 4601-A3 Front Projection Reader

Fiche, Aperture Card, Rollfilm Reader

The 4601-A3 U is a universal microfiche, aperture card, 16mm and 35mm Microfilm Reader. It has a large screen for crisp and sharp images from Document Microfiche, 16mm microfilm and full frame viewing of the 35mm film. Image rotation is through a single prism on single or dual lens for 24X, 32X and 36X, and with a second prism when the 12.5X lens is used. Changing from the Fiche Carrier to the Rollfilm Carrier is simple. This energy efficient reader has a convenient removable power drawer.

4601-A3FP  Front Projection Reader
Manual roll film carrier, 13"x20" screen, fixed 12.5X fixed lens and choice of 24X, 32X, or 36X lens, 360° image rotation on optional 2nd lens only.
4601-A3e  Front Projection Reader
Manual roll film carrier, 12"x16.5" screen, 15.5X and 24X lenses, 360° image rotation on both lenses.

Indus 4601-A3 Microfiche Reader Specifications:
Input: Microfiche, Jackets, 16/35mm Rollfilm in Open Reels
Screen Size: H13" x W20" (330.2mm x 508.0mm)
Focus Control: Front mounted, precision control knob, gear operation
Image Rotation: 360° Image Rotation by Prism for one lens in single lens and for both lenses in dual lens
Magnifications: 12.5X, 24X, 32X, 36X
Carrier: Standard - 4" x 6" (105mm x 152mm) Single Fiche Carrier, Optional: 4" x 6" (105mm x 152mm) Dual, Aperture Card Carrier or 16/35mm Rollfilm Manual, 16/35mm Rollfilm Motorized
Lamp: Dual Intensity Quartz Halogen 13.8Volt 85Watt
Electrical: Standard - l20Volt 50/60 Hz, Optional - 220/240Volt 50/60 Hz
Dimensions: W 21" x D 22.25" x H 26.75" (533.4mm x 565.1mm x 679.4mm), W 23" (584.2mm) when optional rollfilm carrier is installed
Weight: 40 lbs. (18.1 Kg.)
Warranty: 1 year limited warranty

All prices and specifications subject to change without notice.
