Indus Desktop Microfiche Readers

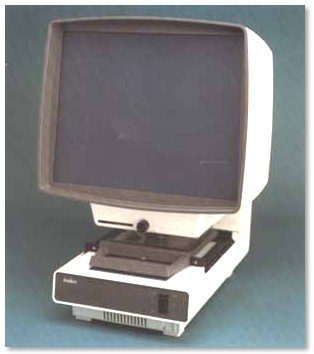

Indus 4601-01 Microfiche Reader
 Full 100% COM Reader
The Indus 4601-01 is a COM microfiche reader with full 100% blow back giving you a high resolution easy-to-read image through a high quality optical system and precision carrier for smooth operation. The 4601-01 reader features an optional dual lens system with precise lever action for easy changing of lenses. The 4601-01 microfiche reader has a front mounted precision focus.
Other options available include a dual carrier system and a scribe line centered on the screen, black or transparent yellow. A 12V DC power cord and vehicle mount is also available.
4601-01 Microfiche Reader Advantages:
- 5 Year limited Warranty
- Removable power drawer for easy maintenance
- Lightweight and easy to move
- Large, angled screen
- High impact plastic construction
- Removable screen, mounted on a bezel for easy cleaning and lens changing
- Precision carrier for smooth operation
|
4601-01 Microfiche Reader Specifications:
Screen Size: W360mm x H282mm (14.2" x 11.1"), rear projection, non-glare blue, gray or green
Carrier: Standard - 105mm x 152mm (4" x 6") self-opening, Optional - 105mm x 187mm (4" x 7 3/8") self-opening or 105mm x 152mm dual (4" x 6") self-opening
Input: Microfiche, Jackets, and Aperture Cards
Magnifications: 21x, 24x, 32x, 36x, 42x, 48x, 54x, and optional 72x
Lamp: Dual Intensify 13.8V, 30W
Electrical: Standard - 120V. 50/60Hz, Optional - 220/240V, 50/60Hz for international application. UL, CSA and International Safety Approvals
Dimensions: W400mm x H530mm x D495mm (15.7" x 20.9" x 19.5")
Weight: 15 pounds (6.8 Kg)
Construction: High Impact Plastic and Steel
Warranty: 5 year limited warranty
| Item |
Description |
List Price |
Your Price |
4601-01 |
4601-01 microfiche reader w/single lens & 4"x6" carrier |
$495.00 |
$420.00 |
4601-01 |
4601-01 microfiche reader w/dual lens & 4"x6" carrier |
$615.00 |
$470.00 |
093-0077843 |
Optional Dual 4"x6" Carrier - add to above prices |
$65.00 |
$49.00 |
093-0078025 |
Hood Extension |
$21.00 |
$20.00 |
FJX |
Projection lamp, 13.8V, 30W |
$25.00 |
$23.00 |

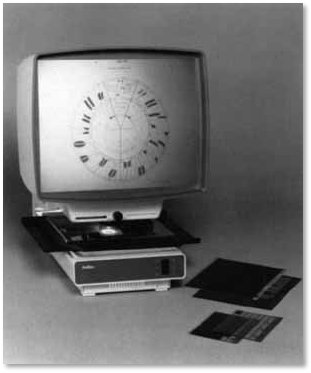

Indus 4601-01J Jumbo Microfiche Reader
 Microfiche/Jacket Reader for Jumbo Fiche
The Indus 4601-01J is a Desktop Microfiche/Jacket Reader for reading of Jumbo Microfiche 18cm x 24cm (7" x 9") or oversize 5" x 8" jacketed film. The unit offers a 14" x 11" rear projection screen for viewing up to two pages of information. Images on the Indus 4601-01J at 24x through 48x project a full size, sharp image, whether they are Source or COM generated. Options include a dual lens system with precise lever action for easy changing of lenses, a scribe line centered on the screen, 12V DC power cord and vehicle mount and the RF 1635 Manual Roll Film Attachemnt. Additional accessories available include a dust cover, cleaning kit, turn table and extension hood.
4601-01J Jumbo Microfiche Reader Advantages:
- Removable power drawer for easy maintenance
- Precision optical system for high resolution
- Large, angled screen
- Precision carrier for smooth operation
- Removable screen, mounted on a bezel for easy cleaning and lens changing
|
4601-01J Jumbo Microfiche Reader Specifications:
Screen Size: W14.2" x H11.1" (360mm x 282mm)
Carrier: Standard - 7" x 9.5" (18cm x 24cm)
Input: Jumbo Fiche, Jackets, and Aperture Cards
Magnifications: 21x, 24x, 32x, 36x, 42x, 48x, 54x, and optional 72x
Lamp: Dual Intensify 13.8V, 30W
Electrical: Standard - 120V, 50/60Hz. Optional - 220/240V, 50/60Hz for international application
Dimensions: W15.7" x H20.9" x D19.5" (W400mm x H530mm x D495mm)
Weight: 19 pounds (8.6 Kg)
Construction: High Impact Plastic and Steel
Warranty: 5 year limited warranty
| Item |
Description |
List Price |
Your Price |
4601-01J |
Jumbo Microfiche Reader with Single Lens and Jumbo Carrier |
$669.00 |
$550.00 |
4601-01J |
Jumbo Microfiche Reader with Dual Lens and Jumbo Carrier |
$719.00 |
$647.00 |

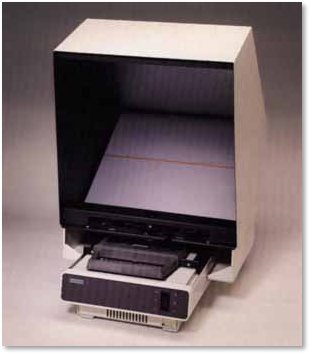

Indus 4601-06 Microfiche Reader
Full Size Source COM and Source Microfiche Reader
Available in Single and Dual lens
This front projection microfiche reader displays both COM and source document images at a full size, 100% blow back with the screen at a comfortable angle, ambient light is blocked from the screen to enhance the sharp, easy-to read image. The 4601-06 reader features an optional dual-lens system, accommodates all formats of COM fiche & jacketed film. There is also an optional 12V DC power cord and vehicle mount. This energy efficient reader has a convenient removable power drawer. Options include a dual lens system with precise lever action for easy changing of lenses and a 12V DC power cord and vehicle mount.
4601-06 Microfiche Reader Advantages:
- Removable power drawer for easy maintenance
- Large, angled screen
- Precision optical system for high resolution
- Precision carrier for smooth operation
- High impact plastic/metal
|
4601-06 Microfiche Specifications:
Screen Size: W360mm x H282mm (14" x 11"), front projection
Magnifications: 21x, 24x, 32x, 36x, 42x, 48x, 54x, and optional 72x
Dual Switchable Lenses: Optional, any combination of above
Input: Microfiche, Jackets, and Aperture Cards
Lamp: Dual Intensity 13.8V, 30W
Fiche Carrier: Standard - 105mm x 152mm (4" x 6") self-opening
Electrical: Standard - 120V, 50/60Hz. Optional - 220/240V, 50/60Hz for international application. UL and International Safety Approvals
Dimensions: W371mm x H542mm x D489mm (14.6" x 21.3" x 19.2")
Weight: 22 lbs (10kg)
Warranty: 1 year limited warranty
| Item |
Description |
List Price |
Your Price |
4601-06 |
100% Source and COM Microfilm Reader with Single Lens (Choice of 24X, 42X or 48X) |
$498.00 |
$449.00 |
4601-06 |
100% Source and COM Microfilm Reader with Dual Lens (Choice of 24X, 42X or 48X) |
$618.00 |
$559.00 |
|
4"x6" Carrier Modified for Aperture Card |
$22.00 |
$22.00 |
Indus 4601-11 Source Microfilm Reader
Available in Single or Dual lens
Larger Screen but still very compact
The Indus 4601-11 microfiche reader has an A4 Screen for Source Documents at full blowback from 16/35mm roll film and for COM microfiche at 3/4 blowback. The single lens version has 360° image rotation for both the single lens and dual lens versions. State-of-the-art features such as works-in-a-drawer, dual intensity long life lamp, central control for focus and image rotation make the 4601-11 a very versatile reader. An optional carrying handle is available for easy portability.
Indus 4601-11 Microfiche Reader Advantages:
- Front mounted precision control gear driven controls for focus and image rotation
- Optional carrying handle for portability
- Drive belt focusing for razor sharp images - no backlash
- Lightweight and easy to move
- Simplicity of design for low maintenance
- Fanless convection cooling - absolutely silent operation
- Replacement 13.8V, 28W FLT Lamp, Deluxe Cleaning Kit and Dust Cover included.
|
Indus 4601-11 Microfiche Reader Specifications:
Screen Size: 11.6” H x 11.2’W (2294.6mm x 284.4mm)
Screen Color: Standard: Non-Glare Blue. Optional: Gray or Green
Focus & Image Rotation: Front mounted precision control gear driven
Magnifications: Standard Single Lens 24X, 32X, 36X, 42X, 48X. Optional Dual Lens with above listed lenses. Optional 18X, 15X
Lamp: Dual Intensify 13.8V, 50W
Electrical: Standard - 120V. 50/60Hz. Optional - 220/230/240V, 50/60Hz. CE mark.
Dimensions: 22-3/4” H x 11-3/4” W x 16"D (284.4mm x 298.4mm x 406.4mm)
Weight: 28 lbs. (12.7kg)
| Item |
Description |
List Price |
Your Price |
4601-11 |
4601-11 microfilm reader with single lens |
$941.00 |
$645.00 |
4601-11 |
4601-11 microfilm reader with dual lens |
$1,061.00 |
$799.00 |
15x lens |
15x lens for single lens model |
$216.00 |
$198.00 |
15x lens |
15x lens for dual lens model |
$369.00 |
$339.00 |
18x lens |
18x lens for 4601-11 microfilm reader |
$136.00 |
$122.00 |
Handle |
Carrying handle assembly for 4601-11 |
$37.00 |
$34.00 |
Prism |
Second prism for 4601-11 microfilm reader |
$157.00 |
$141.00 |
|
Motorized rollfilm attachment - open reel |
$1,989.00 |
$1,798.00 |
All prices and specifications subject to change without notice.
